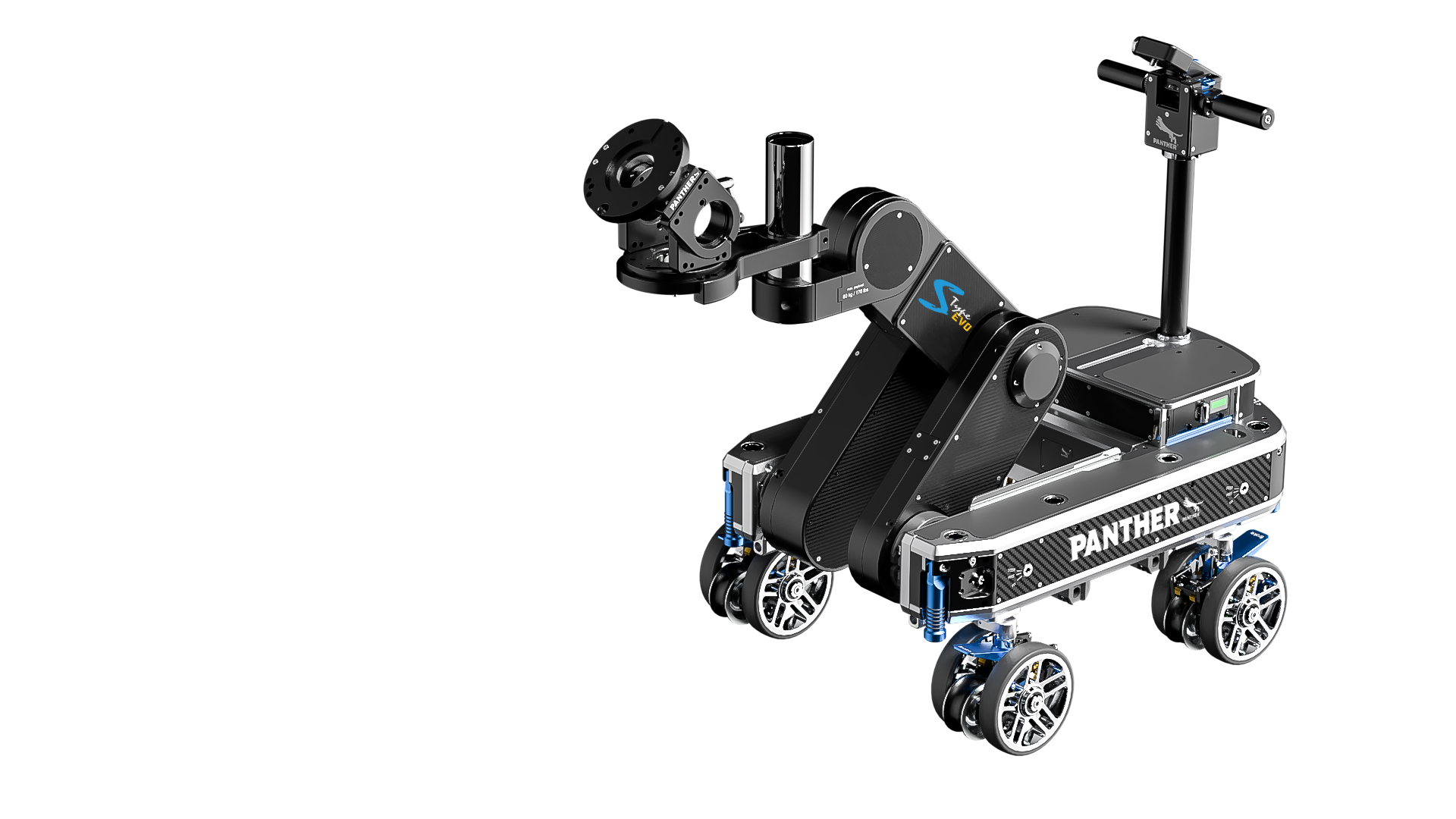

S-type EVO
The Evolution You Can Feel
Every movement tells a story.In the world of professional camera support, even the smallest detail defines the difference between a good shot and a perfect one.The S-Type EVO was designed for those who demand absolute smoothness, unwavering stability, and effortless operation — every single time.
ALL UPGRADES AT A GLANCE
Axle Shaft with
90-Degree Shifting
A redesigned axle geometry allows
for smoother travel across the track.
Fluid, controlled movement
— no resistance, no drift.
Smoothed
Drive Belts
Re-engineered belt surfaces ensure
a whisper-quiet lifting motion.
Minimized vibration for
ultra-steady camera operation.
Reinforced
Chain Tensioners
The upgraded tensioning system delivers exceptional precision in crab and steer modes.
Sharper response. Greater consistency.
Longer component life.
Dynamic
Wireless Connectivity
The new Bluetooth module features
adaptive transmission power for an
extended range and unmatched signal
stability.
Reliable control, even on busy sets
or large studio floors.

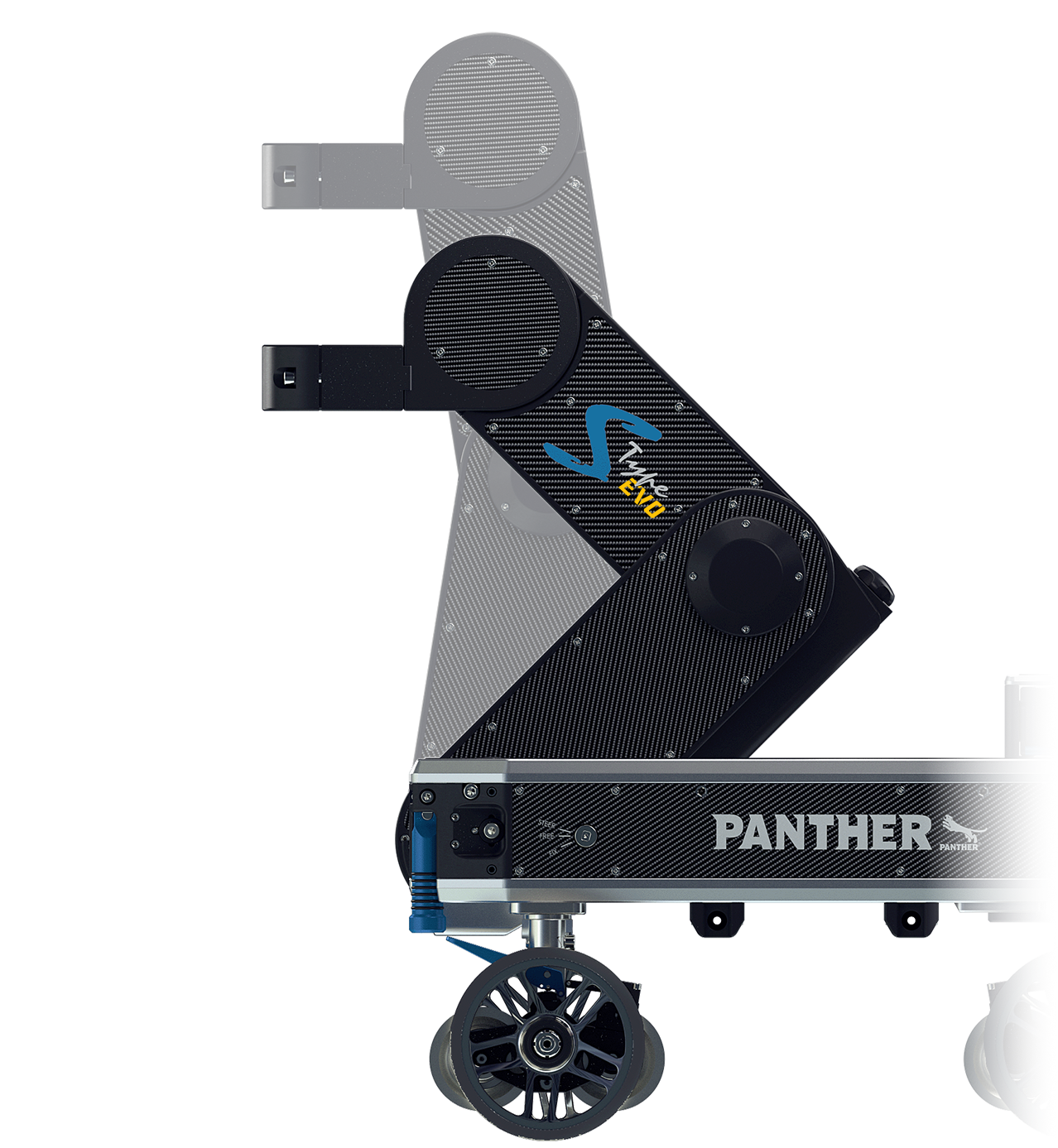

SCISSORS ARM
ELECTRO MECHANIC SCISSOR
In order to use the full length of the scissors-arm, we developed the patented fullrange technology. This allows the scissors-arm to move the same way up as down into the negative. An additional high-low rig is no longer needed.
features
100% Linear
During the development of the arm our engineers gave everything! The S-Type scissors-arm makes a 100% linear movement. Low energy expenditure and maximum stability are ensured by the compact double-arm design. lly column weighs only 67 kg / 147 lbs!
Detachable
To simplify the transport massively, the scissors-arm element of the Panther S-Type is detachable. It can be quickly and easily separated 100% from the body. Extra developed carrying bars (310120) enable an easy removal of the scissors arm.
Transport
The slim design of the S-Type makes space-saving transport easy to realize. Therefore you can transport the dolly if your space is limited – even upside down. The integrated carrying handles can be extended by the Carrying Grips (302783).
power feature
CHARGING STATION
Charge smart: with the Charging Station (313165) you can charge up to 2 Batteries simultaneously. It has an integrated handle and a very compact design. There is also a Case (313225) available with space for 2 Charging Stations.
ADDITIONAL features
Dolly Power Supply
Panther Dolly battery with "Snap-On" mechanism
Effective Charge
Can also charge Panther "Snap-On" Batteries (Classic, Evo, Super Panther Batteries) via cable
Great Consumption
Input: 100-240V
Output: 2x 24V, 4A
Technical data
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

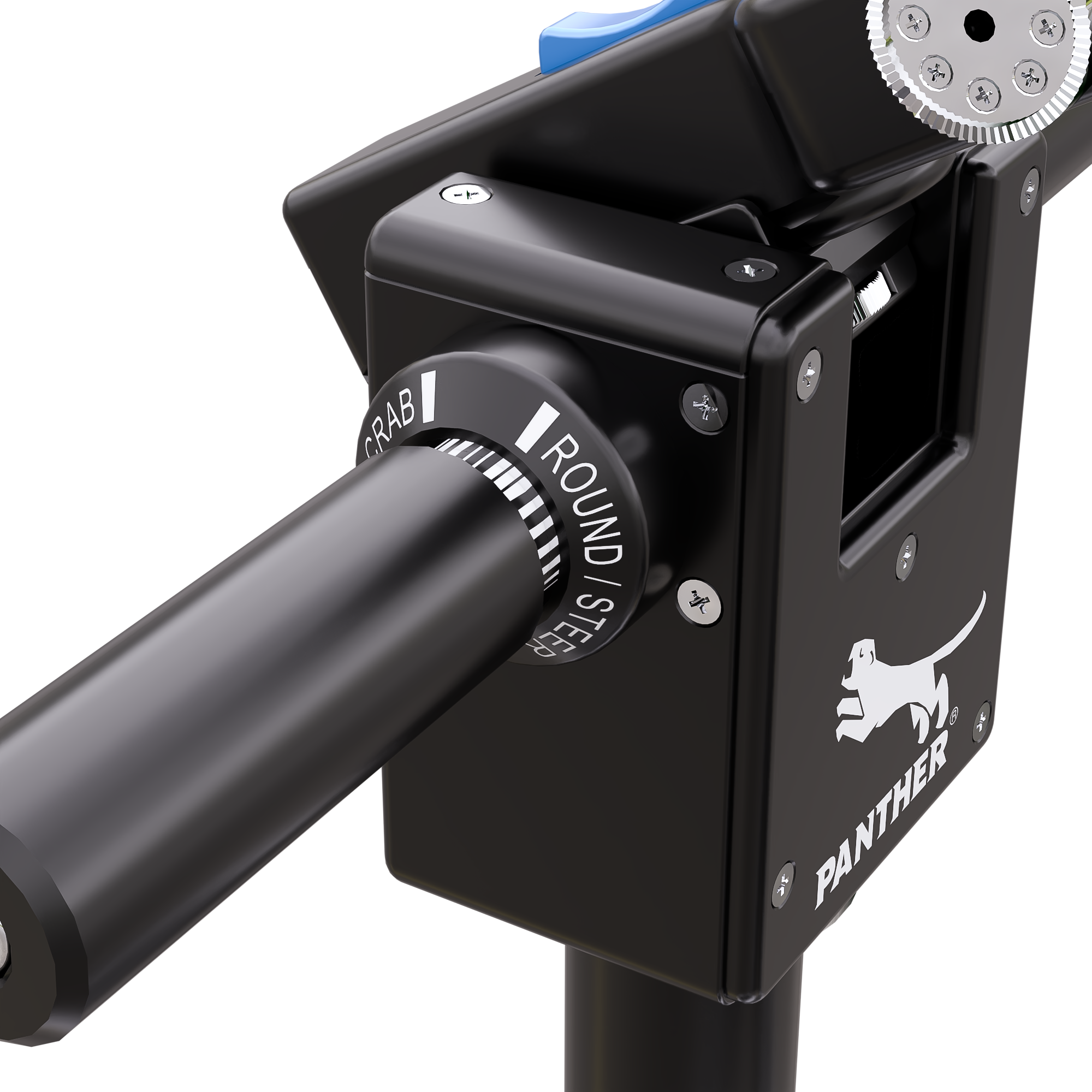

STEERING MODES
4 STEERING MODES
To give maximum flexibility to the operator, the Panther S-Type is equipped with 4 different steering modes.
STEERING MODES
CRAB
In CRAB mode, all wheels are parallel and can move freely. This means you can switch from forwards-backwards movements to right-left movements very quickly.
ROUND
With ROUND steering???
FRONT
With FRONT steering, the two front wheels are parallel to each other. The two rear wheels are fixed.
REAR
With REAR steering, the two rear wheels are parallel to each other. The two front wheels are fixed.
PUSH BAR
FOLDABLE PUSH BAR
In order to facilitate the work of the Dolly grip, we have designed an additional push bar (301342). It is extendable and foldable and can be plugged in and used all around the Dolly.
ADDITIONAL features
Extension
If you want to extend the height of your Push Bar there is an extention (311049) available.It is used by mounting it in between the Push Bar & the Dolly.
Grip Pouch
The Grip Pouch (313387) is perfect for neatly storing essential tools and can be easily attached to the Push Bar.
WHEELS
COMBI-WHEELS
With our combi wheel unit, the dolly can be driven onto the track without lifting it. Various wheels for different undergrounds are available. All single wheels and even the complete combi wheel can be changed quickly and easily due to dove tail connections. An integrated „BRAKE lever“ will brake the studio- or air wheels simultaneously with the track wheels.
ALL WHEELS AT A GLANCE
Pneumatic Wheel
Good dampening of shocks and objects.
Studio Wheel
Easy maneuvering / pushing the Dolly.
Studio Wheel Air
Easy maneuvering / pushing the Dolly. Good dampening of shocks and objects.
Big Wheel
Practical transport wheel.
Drive onto track without lifting.
WHEELS
COMBI WHEEL UNIT
With our Combi Wheel Unit, the Dolly can be driven onto the tracks without lifting it. Various wheels for different undergrounds are available. All single wheels and even the complete combi wheel can be changed quickly and easily due to dove tail connections. An integrated „BRAKE lever“ will brake the studio- or air wheels simultaneously with the track wheels.
ALL WHEELS AT A GLANCE
Pneumatic Wheel
Good dampening of shocks and objects.
Studio Wheel
Easy maneuvering / pushing the Dolly.
Studio Wheel Air
Easy maneuvering / pushing the Dolly. Good dampening of shocks and objects.
Big Wheel
Practical transport wheel.
Drive onto tracks without lifting.
products
OPERATION
BLUETOOTH HANDSET
Always in front of the operator: we wanted the Dolly grip to be able to operate the Dolly, the scissors arm and switching steering modes at the same time - all in one hand!
ADDITIONAL features
Handest Adapter
Attach the handset to any position with our handset adapter.
Handset Case
We also offer a case for the handset for both protection and organisation.
Protection Glass
Our protection glass protects the handset display from scratches.
FLIP FLOP PLATFORMS
FLIP FLOP PLATFORMS
We also did our best for the platform design! You only need one single set (consisting of 3 parts) for the whole dolly. Whether high or low platform: the S-Type flipflop platforms (302583) cover every position and remain extremely stable.
MOUNTING OPTIONS
1. Option
S-Type with side platform left or/and right.
2. Option
S-Type with front platform and side platform left or/and right.
3. Option
S-Type with front platform.
4. Option
S-Type with all mounted platforms.
power SUPPLY
CHARGING STATION
Charge smart: with the Charging Station you can charge up to 2 Batteries simultaneously. It has an integrated handle and a very compact design. There is also a Case available with space for 2 Charging Stations.
ADDITIONAL features
Durability
When fully charged, our batteries last for at least a full day of shooting!
Effective Charge
Can also charge Panther "Snap-On" Batteries (Classic, Evo, Super Panther Batteries) via cable
Great Consumption
Input: 100-240V
Output: 2x 24V, 4A
products
power feature
CHARGING STATION
Charge smart: with the Charging Station (313165) you can charge up to 2 Batteries simultaneously. It has an integrated handle and a very compact design. There is also a Case (313225) available with space for 2 Charging Stations.
ADDITIONAL features
Dolly Power Supply
Panther Dolly battery with "Snap-On" mechanism
Effective Charge
Can also charge Panther "Snap-On" Batteries (Classic, Evo, Super Panther Batteries) via cable
Great Consumption
Input: 100-240V
Output: 2x 24V, 4A
Technical data
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
HIGH PLATFORM
HIGH PLATFORM
To allow the cameraman to stand on a higher level there is a divisible and height adjustable High Platform available. It can be mounted toolfree directly onto the Dolly.
REMOVABLE STEERING ROD
DETACHABLE STEERING ROD
In some situations it might be necessary to remove the steering rod (for example transport). This is done very fast and easy by only open one screw with the intrgrated tool.
