BUDDY PLUS
ABOUT
OUR BUDDY PLUS DOLLY
The Buddy Plus dolly is a versatile Film and Video dolly. Compact measurements, extreme stability and variability will convince even demanding professionals. The body is the same that we have on our Classic Plus dolly. Therefore we have maximum compatibility to exisiting accessories, such as platforms, carrying bars, etc.
Ergonomic Design
All control elements are coloured to be easily recongized and easy to handle. The bolts can be fixed in „open“ position and can be adapted to the tracks perfectly – especially in curves. The ergonomic design facilitates intuitive working. Switch-over is completely done without tools. So the Classic Plus can be operated in narrow gauge (36 cm) or in wide gauge (62 cm) by using the locking pin.
WHEELS
COMBI-WHEELS
With our combi wheel unit, the dolly can be driven onto the track without lifting it. Various wheels for different undergrounds are available. All single wheels and even the complete combi wheel can be changed quickly and easily due to dove tail connections. An integrated „BRAKE lever“ will brake the studio- or air wheels simultaneously with the track wheels.
ALL WHEELS AT A GLANCE
Pneumatic Wheel
Good dampening of shocks and objects.
Studio Wheel
Easy maneuvering / pushing the Dolly.
Studio Wheel Air
Easy maneuvering / pushing the Dolly. Good dampening of shocks and objects.
Big Wheel
Practical transport wheel.
Drive onto track without lifting.
WHEELS
COMBI WHEEL UNIT
With our Combi Wheel Unit, the Dolly can be driven onto the tracks without lifting it. Various wheels for different undergrounds are available. All single wheels and even the complete combi wheel can be changed quickly and easily due to dove tail connections. An integrated „BRAKE lever“ will brake the studio- or air wheels simultaneously with the track wheels.
ALL WHEELS AT A GLANCE
Pneumatic Wheel
Good dampening of shocks and objects.
Studio Wheel
Easy maneuvering / pushing the Dolly.
Studio Wheel Air
Easy maneuvering / pushing the Dolly. Good dampening of shocks and objects.
Big Wheel
Practical transport wheel.
Drive onto tracks without lifting.
products
CRAB & STEER
CRAB & STEER MECHANISM
Crab is included as a standard. The "Steer" mode can be ordered as an option.The biggest points of difference of our patented Crab & Steer mechanism are perfect, mathematically calculated elliptical steering sprockets. With that the wheels are in a steering geometry (see picture below).
This steering geometry ensures perfect and smooth circular curves without drift, noise, high rolling resistance or even blocking wheels. Other dollys are not able to move the dollys in tight curves, because the wheels’ position is parallel and so it blocks! Changing Steering mode is easily done by shifting the blue "Crab + Steer" lever.
without Crab & Steer mechanism
with Crab & Steer mechanism
STEERING MODES
CRAB
In CRAB mode, all wheels are parallel and can move freely. This means you can switch from forwards-backwards movements to right-left movements very quickly.Panther Dolly battery with "Snap-On" mechanism
STEER
In STEER mode, the two rear wheels are fixed in parallel and the wheels at the front can move freely. These move with a toe difference angle and thus ensure seamless steering.
TRANSPORT
Compact
Compact transport is given through the many options of wheel arm positions. Every wheel arm can be adjusted separately to offer maximum flexibility for all transport situations.
PLATFORMS
COLUMN DOLLY PLATFORMS
The versatile platforms can be assembled in unprecidented ways. They can be mounted on the steering sleeves to create a flat surface, completely without trip hazards. Machined from solid, each component offers fast and non play connection. A case for transport is available.
ADDITIONAL features
80mm Hole
We have provided our platform and our short platform with 80 mm holes to fit Euro attachments.
M10, M12, 3/8 inch
All platforms are equipped with M10, M12 and 3/8 inch threads for mounting accessories.
No extra Tool
Use our Panther Allen Key which is mounted on the Dolly, no additional tools are required.
Designed for all
Our platforms fit for all Panther column Dollies and Magnum Dolly.
products
Ready to configure your product
Exactly the way you need it
configure your BUDDY
Basic configuration
BUDDY PLUS
dolly
It With seat extention, steering rod, handset + cable.
Without wheels, seat, Crab & Steer.
CRAB & STEER
Click if you want to add add the Crab & Steer mechanism Kit
TURNSTILE
ATTACHEMENT
Click if you want to add add our Turnstile Attachment
WHEEL TYPE
Select the wheels of your choice
accessories
STEERING
Choose the right steering option for your needs
platforms
Choose amount of all parts that you want to add to your inquiry.
wheels & Wheel Accessories
Choose amount of all parts that you want to add to your inquiry.
SEAT &
SEAT ACCESSORIES
Choose amount of all parts that you want to add to your inquiry.
FURTHER
ACCESSORIES
All you need for a safe transportation
BOOGIE WHEELS
All you need for a safe transportation
EURO RISER
Other useful accessories for the X-Type
Universal accessories

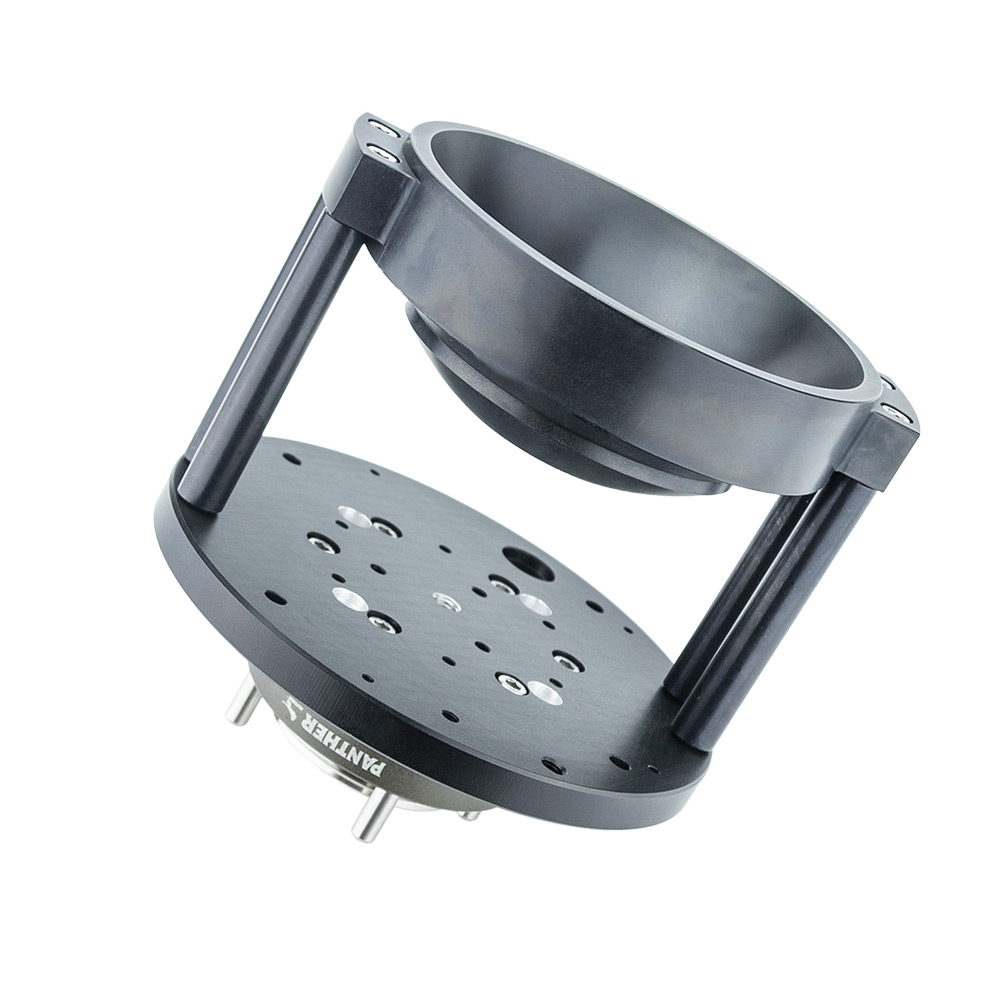

BOWL
Choose amount of all parts that you want to add to your inquiry.
MITCHELL
Choose amount of all parts that you want to add to your inquiry.
EURO
Choose amount of all parts that you want to add to your inquiry.
