Vario Slider
Designed to be great


ABOUT
OUR VARIO SLIDER
Everyone has different requirements. That’s why the Slider can be configured indvidually exactly to your needs. It consists of many individual hartcoated components which enable high flexibility! Make your own Slider exactly as you want it!

SLEDGES, BRIDGES, Tracks



BRIDGES
Everyone has different requirements. That’swhy the Slider can be configured indviduallyexactly to your requirements. It consists of many individual hartcoated components which enable high flexibility! Make your own Slider exactly as you need it!
The Vario-Slider is equipped with our Quick Change Adapter in bridge and tracks!
Change from the narrow to the wide tracks and change thelength of the tracks in no time. Add a second sledge to the tracksquite fast. Best of all, you only need to open the bridge!
New groove in all Slider Tracks!
Change from the narrow to the wide tracks and change thelength of the tracks in no time. Add a second sledge to the tracksquite fast. Best of all, you only need to open the bridge!

TRACKS
The tracks are available in 7 different lengths (50cm – 300cm / 1‘ 8“ – 9‘ 10“).

SLEDGES

Slider Sledge, narrow (19,5cm) (for Slider and Bangi function)

Slider Sledge (25cm) (for Slider and Bangi function)

Bangi Sledge (25cm) (Bangi function)

SLIDER MODES

BANGI MODE
Fixed Sledge, moving Tracks
All you need:

- Rotary Adapter 313080

Slider MODE
Fixed Tracks, moving Sledge
All you need:

- Clamping for Bridge 311636

Slider MODE 90°
Fixed Tracks, moving Sledge
All you need:

- Clamping for Bridge 311636

Center Mounted
Adjustable Tracks, moving Sledge
All you need:

- Rotary Adapter (25cm) 228123

- Rotary Adapter (19,5cm) 228118

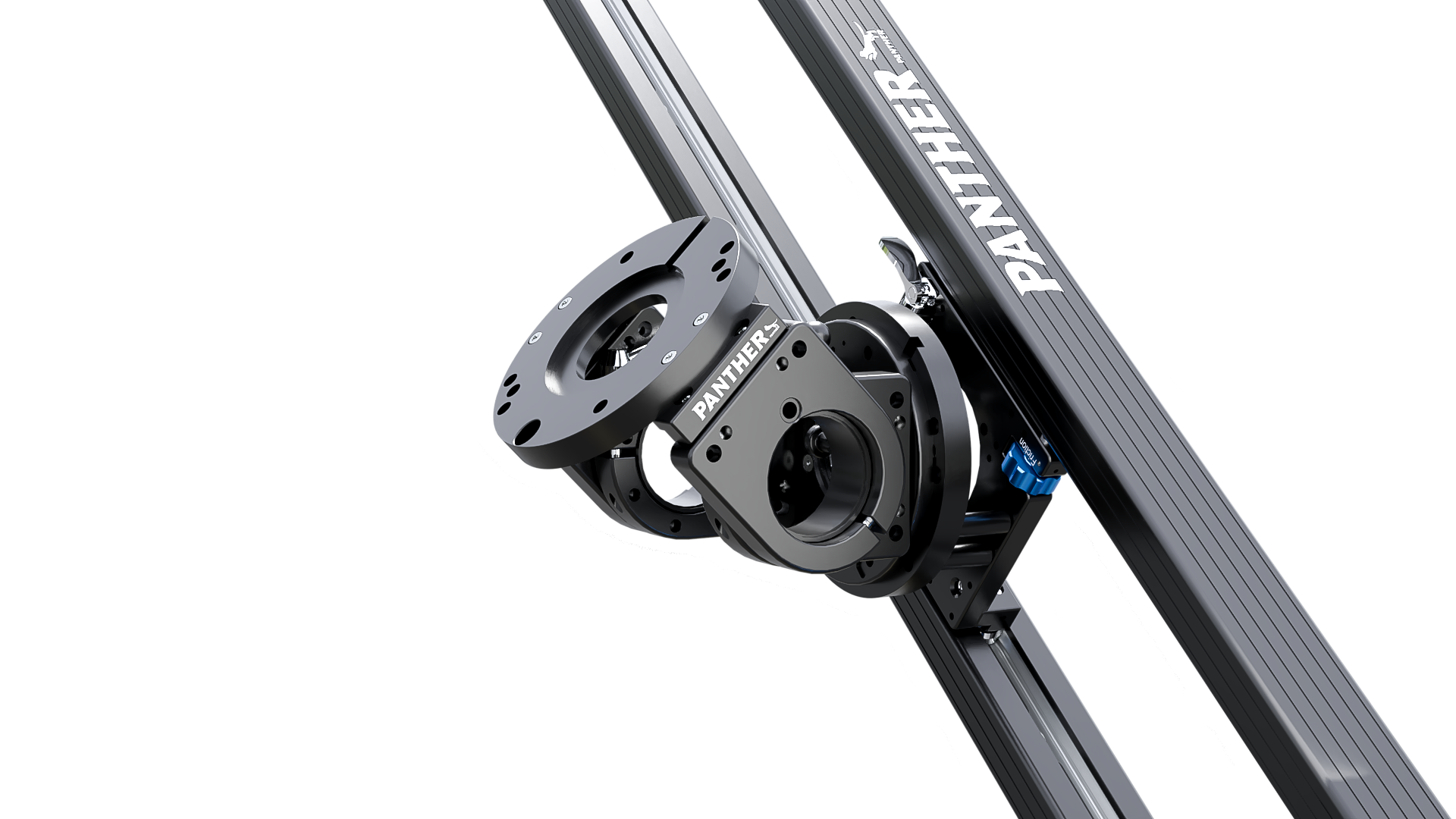

MOUNTING ADAPTER
Rotary Adapter (25cm) 228123
By opening the latches, the tracks can be moved off center for customized work. Rollers facilities the adjustment of track positioning. Integrated bearings allow to rotate the slider 360°.
Rotary Adapter (19,5cm) 228118
By opening the toggle grips, the tracks can be moved off center for customized work. Integrated bearings allow to rotate the Slider 360°.
Adapter Plate (19,5cm & 25cm) 300374
The rectangular shape allows to change the width from 19,5cm to 25cm by simply turning the adapter plate by 90°.
.gif)
Bowl Adapter 300441
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate on a 150 mm tripod.
Mitchell Adapter 312807
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate to mitchell mount.
Tube Flange 228122
Mount the Rotary Adapter, Rotary Adapter narrow and Adapter Plate on a Euroadapter (e. g. on a Dolly).

DAMPENING

MAKE IT PERFECT
The sledge can be optionally equipped either with magnets or a shock absorber. Both can dampen the sledges very smooth. The oil hydraulic shock absorber is adjustable manually, depending on camera load. With a lever the buer can be opened and locked at any position.

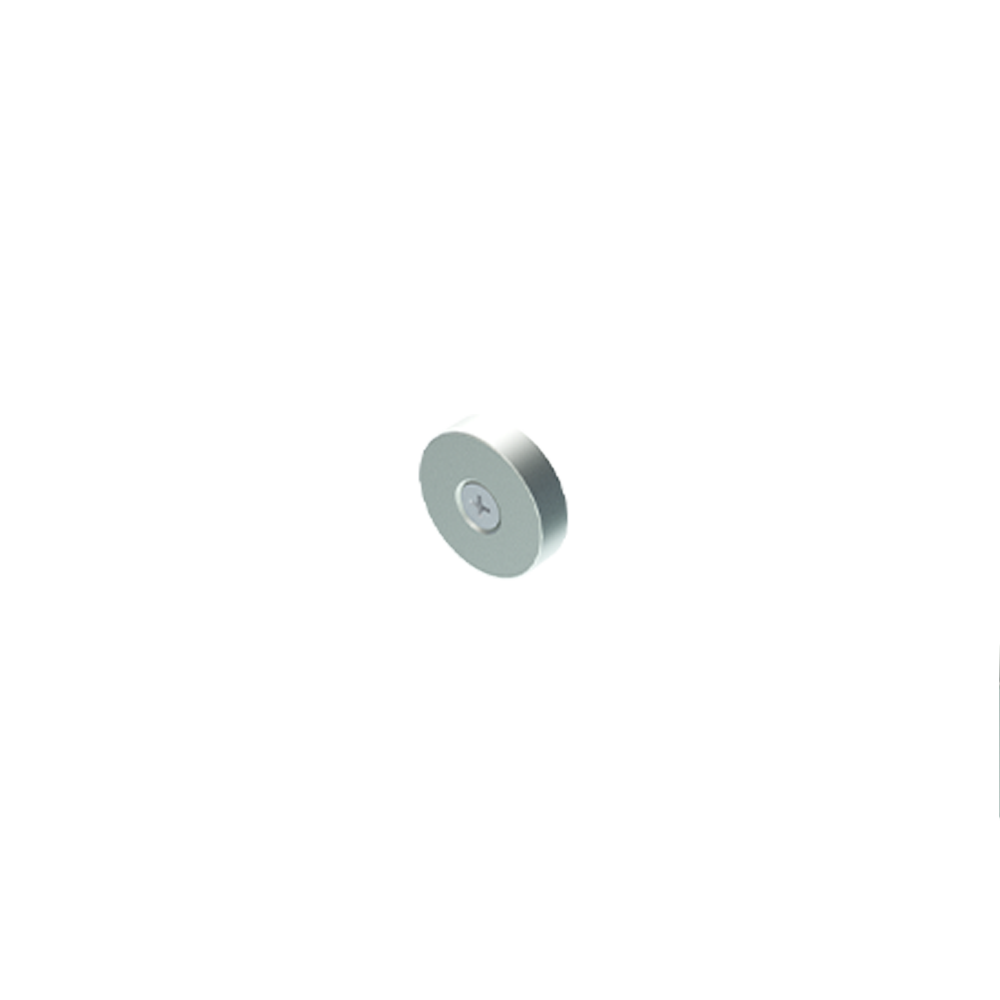

Magnetic Stopper
300377
Shock Absorber Kit
228121
Magnet Set (4 pcs.)
300377

BRIDGE EXTENSION
A lot of possibilities are given through the bridge extention 302339. It is compatible to many accessories. Rigging tubes (48mm & 50mm), Panther Multi Mount or VacuRigg suction cups, levelling feet, 3/8‘‘-28-16mm Adapter, Euroadapter and much more.



WHEELS
The perfect wheels for every ground.
STUDIO
WHEEL

SKATEBOARD
WHEEL

PNEUMATIC
WHEEL

Tube - Wheel Adapter


CAR MOUNT
A suction cup 145993 and a tube 180072 from our Multi Mount system ensures to rig the Slider on a car. Different shots and angles are possible.


CLOSE TO THE GROUND

INVINCIBLE
Rubber Feet

Due to the low position of the bowl (13cm / 5‘‘) the Vario Slider is the perfect tool to make great low shots.
Leveling Feet

Due to the low position of the bowl (13cm / 5‘‘) the Vario Slider is the perfect tool to make great low shots.


DRIVE UNIT
SLIDER DRIVE UNIT
The drive unit 313188 will motorize the Vario-Slider. It is compatible to all Slider lenghts and works in narrow (19,5cm) or wirde (25cm) configuration.
- operated by handset (311753) or smartphone via bluetooth
- Plug and Play operation
- silent drive
- speed: up to 0,5m/sec
- programmable end stops, speeds and ramps
- motion control and loop fuction
- 24V battery powered

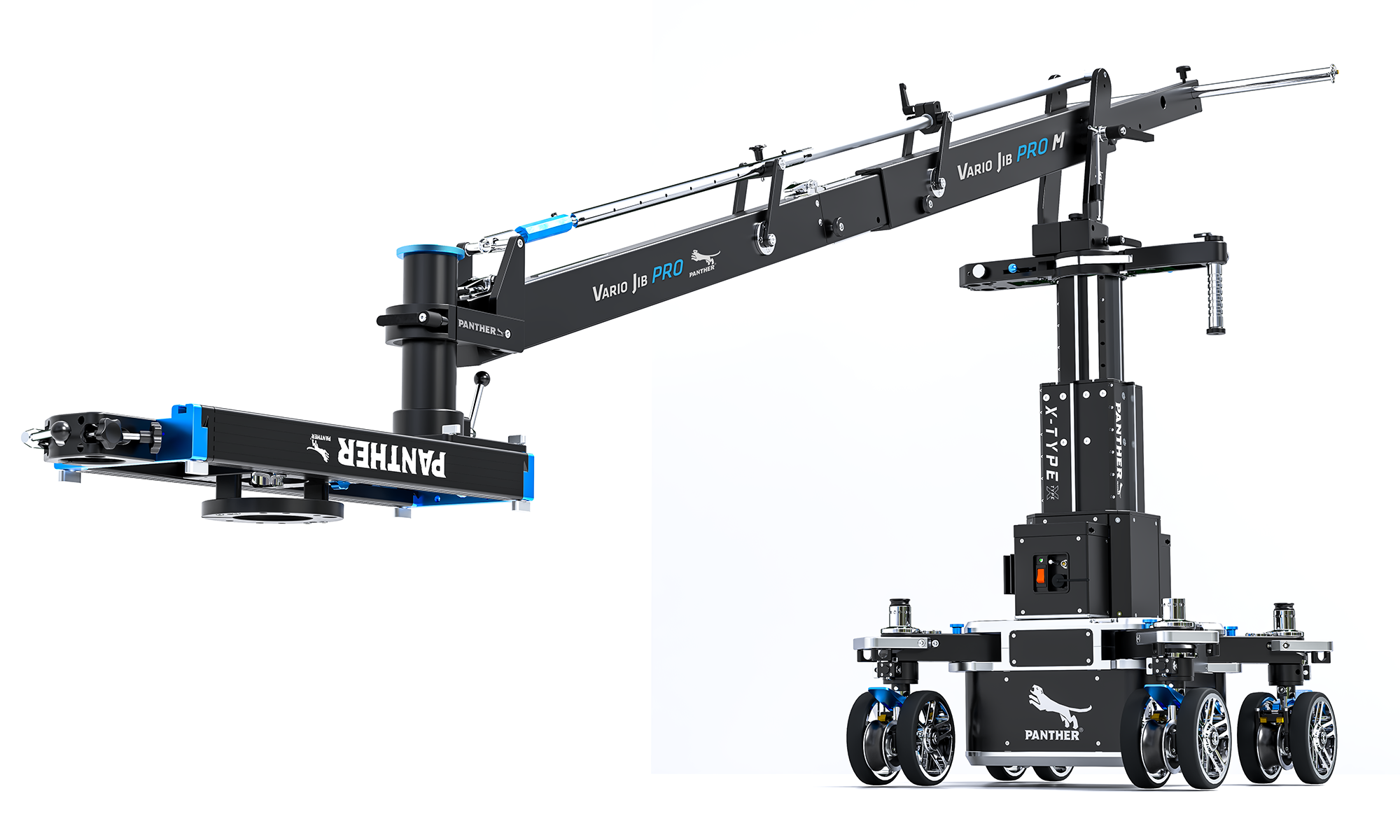

JIB SLIDER
OUR Jib Slider
The perfect combination for 100% linear movements with the Vario Jib or other Jib arms (operated manually).
All you need:
- 2x Slider Tracks 50cm: 313068

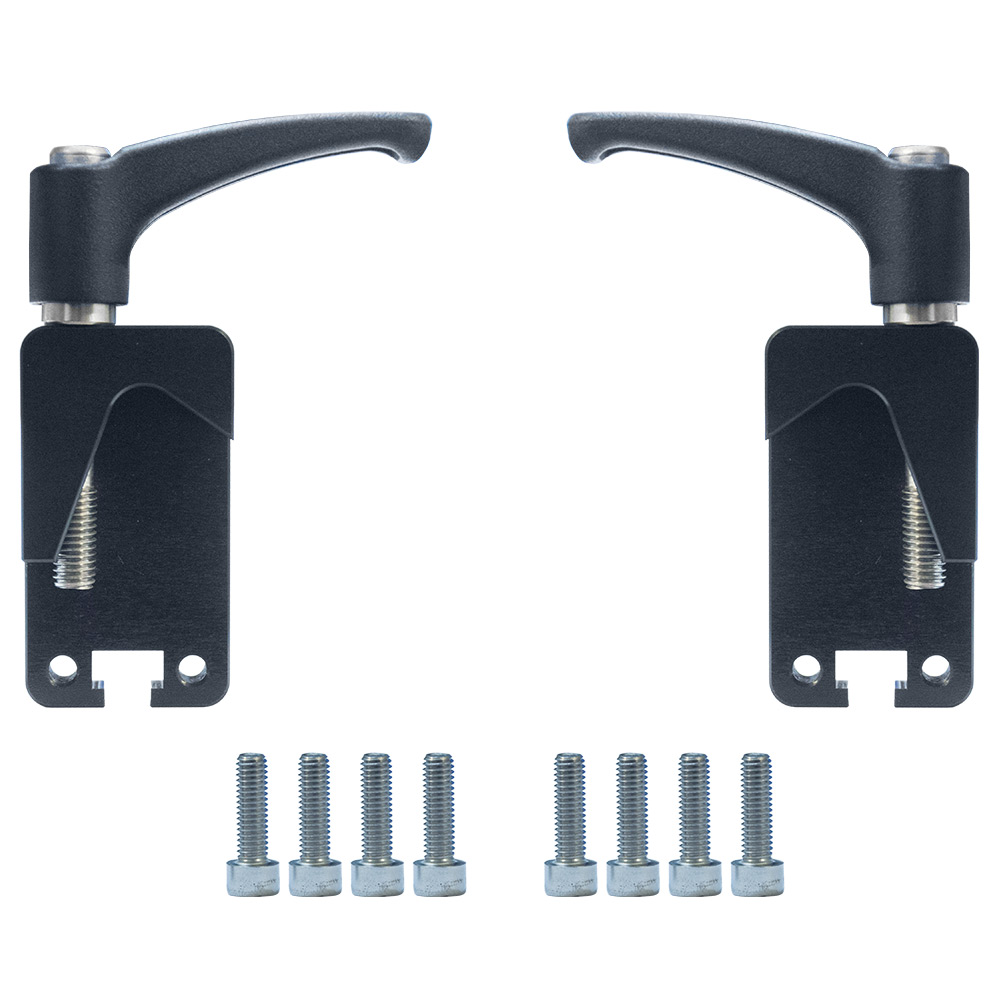

- Quick change adapter female: 301731
- Slider Sledge (25cm): 228119
- Quick Change Bridge (25cm): 313886
- Extension tube (80mm) 16cm: 176612
- Extension tube (80mm) 32cm: 177515
- Euro Offset Bracket (short): 107407
- Bowl 150mm: 107374
- Tube Flange: 228122
- Clamping for Bridge: 311636

THE PERFECT ACCESSORIES FOR OUR SLIDER

3/8“ - 28 - 16 mm Adapter

Tripod Pin
The Tripod Pin is pushed into the groove of the Slider track and clamped where it is needed.

EURO ADAPTER


FLUID DRAG
For very smooth movements there is a Fluid Drag (302333) available. By turning to “+“ or “-“ you can adjust the fluid intensity.




RIGGING BRACKET
The Rigging Bracket is pushed into groove of the Slider track and clamped where it is needed.
- 1/4“ thread for accessories
- 3/8“ thread for flexarm
- M10 thread for individual rigging
- Ring for tie-down strap
- Clamp for rigging tubes
