Flex Grip Kit
No Limit - Just Creativity


ABOUT

Universal Modular System
The Flex Grip Kit is a universal modular system for multi-purpose use. It can be extended according to your needs. Whether Table Dolly, LowBoy/HiHat, Doorway Dolly or much more - you can transform the Flex Grip Kit always into exactly the product you need.

SO MANY POSSIBILITIES

Features
The Flex Grip Kit can be transformed into following product categories:
- Table Dolly
- LowBoy / HiHat
- Rocker Plate (for low shots)
- Euro Riser Base (3-12 legs)
- Camera Base
- Rigging System (Tubes 33 - 50 mm)
- Slider (on ground or tripod)
- Tracking Dolly (36 + 62 cm track gauge)
- Doorway Dolly (with Tire Set and Steering)

STANDARD KIT

THE STANDARD KIT
It all begins with the Standard Kit (204775). Whether what you wanna set up: there are two main parts of the Flex Grip Kit:

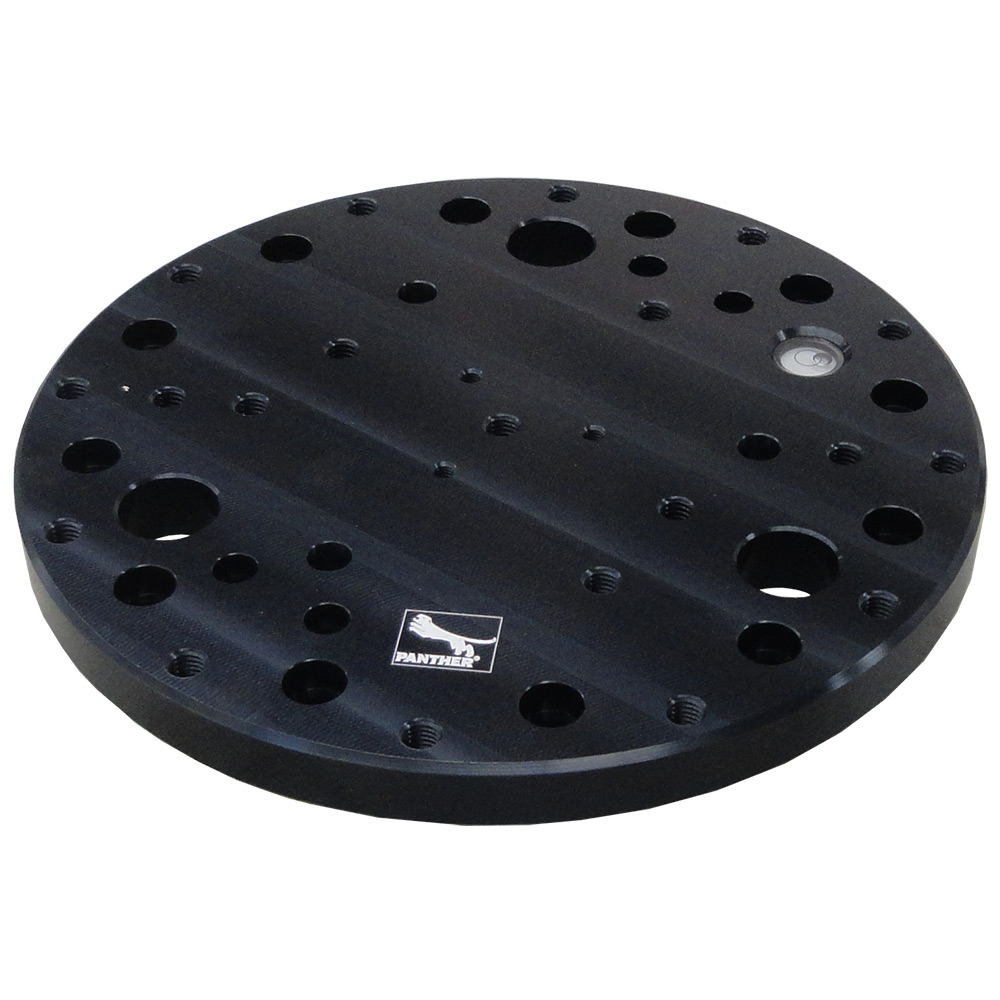

- 1x Base Plate incl. 4x Distance Bolts (204776)
- 1x Euro Mount (122209)
- 2x Clamp (204778)
- 3x Leveling Foot (110391)
- 8x Leg (204777)
- 1x Screw (139961)

ADDITIONAL CASE
We especially designed a case (204779) for the Flex Grip Kit Standard Kit.


CRANKED EURO RISER
EASY HEIGHT ADJUSTING
We extented our Euro Riser program again with the height adjustable Cranked Euro Riser. The big advantage is an easy height adjusting with mounted equipment by turning the crank. The max. payload is 150 kg / 330 lbs
PRODUCT RANGE
CRANKED EURO
RISER S

Height:
43 – 62 cm / 17 – 24,5"
CRANKED EURO
RISER M

Height:
62 – 100 cm / 24,5 – 39,5"
ADDITIONAL features
SAFETY LATCHING

As a unique feature we have an integrated safety-latching mechanism. This prevents an unintentionally fall down.
EYEBOLTS

Additionally we fitted the Cranked Euro Riser with eyebolts around the column, to be able to secure the Euro Riser further with straps, under heavy load.

GO LOW

LowBoy / HiHat
The LowBoy / HiHat can be equipped with 100 / 150 mm bowl or with a Mitchell Plate. Levelling feet (110391) can be placed directly to the Base Plate or for bigger footprint, to extention legs. The internal bubble level always keeps you safe.

Rocker Plate
With the Rocker Plate the Flex Grip Kit becomes an easy and very flexible Low Shot System. You can do great camera movements (pan and tilt) close to the ground and lock your camera position.

EURO RISER BASE

USE IT AS A BASE!
It can be set up with 3 or more (up to 12) legs. The flexible design with the ratchet makes tuff situations easy. High payload capacity of up to 250 kg (550 lbs) is achieved due to strong, high grade aluminum.

Mount the legs exactly into the required direction.

Usable as Studio Dolly with Studio Wheels.

CAMERA BASE

ENABLES 360° ROTATION
In combination with a rotating seat, the Flex Grip Kit becomes a Camera Base for e. g. sport events.

TURTLE BASE
Turtle Base

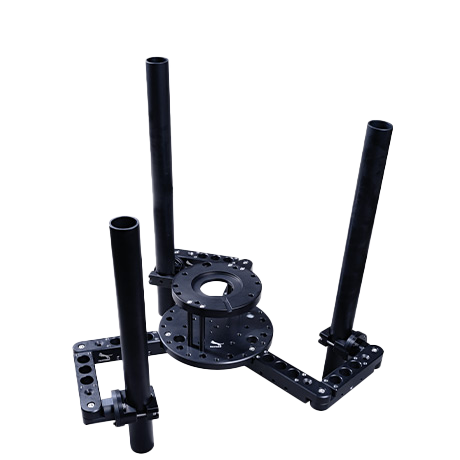

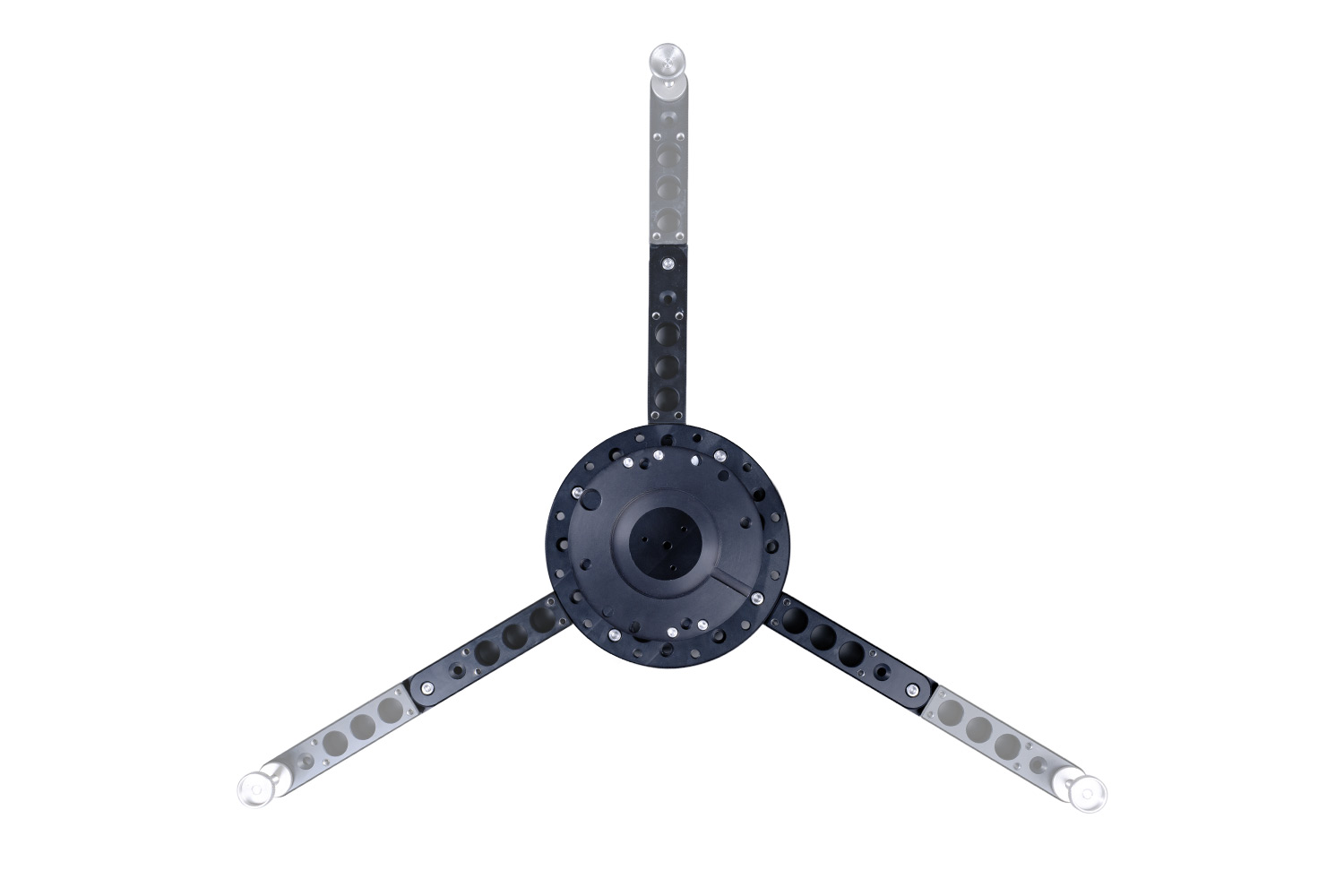

The Turtle Base Kit (313640) is a 3 leg and 4 leg base for all kinds of camera set ups. It comes with a bubble level, Mitchell plate and Euro adapter. All existing Adapters can be mounted as well as a turnstile mount. Different holes and threads in a cheese plate pattern on plate and legs facilitates working. Variable tube mount from 33-50mm.



RIGGING

CLAMP
Using the same ratchet connection of the legs, the Clamp is ready to be used for scaffold mounting or rigging. This clamp is designed to hold all tubes with diameters from 33 mm to 50 mm and can be rotated in two axis.





SLIDER

FLEX GRIP KIT SLIDER
Normally, sliders are limited by the length of their rail. Not with the Flex Grip Kit! You decide the length due to a rail system which can be extended to your needs. It can also be combined with curved rails. A high grade aluminium tube weighs only 1,9 kg / 4 lbs and has a length of 1,5 m / 4,9 ft. Special lengths on request. The Flex Grip Kit slider can be operated on 36 cm or 62 cm gauge.

SKATEBOARD WHEELS
Smooth and silent sliding is guaranteed by using high quality bearings, and an offset positioning of the rubber counted Skateboard Wheels (204793). Leveling is easy by means of leveling feet if layed down the floor or by simply adjusting the height of the stand if mounted on a higher level.

Base Plate with 4x Leg(=track gauge 36 cm / 14,2")

Base Plate with 8x Leg(=track gauge 62 cm / 24,4")

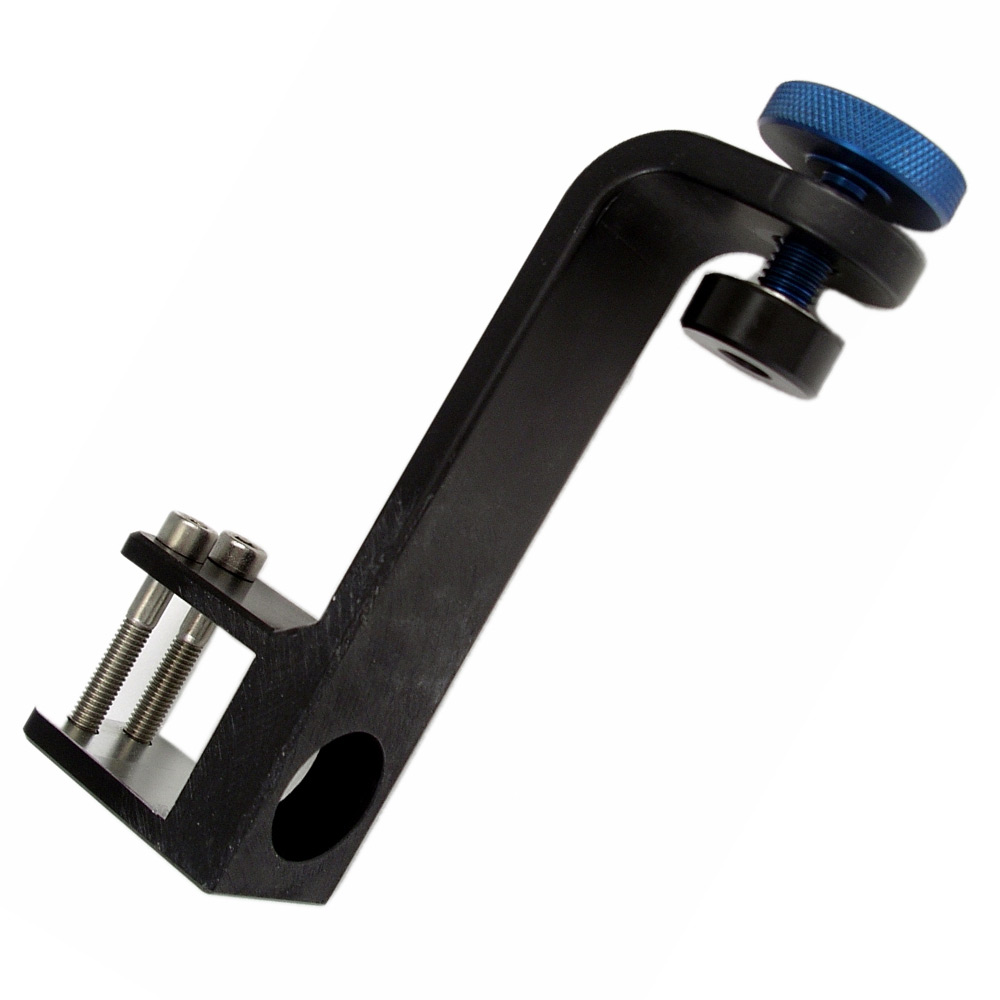

SAFETY BRACKET
For a safe handling of the Flex Grip Kit Slider we have our safety brackets (313887). This prevents the skateboard wheels from derailing. For more room to maneuver, the bracket is height adjustable.

TRACKING DOLLY

TRACKING DOLLY
You can convert the Flex Grip Kit into a Tracking Dolly by adding 4 identical Platforms (204782). A high payload capacity of up to 250 kg (550 lbs) enables to ride the cameraman and assistant. The standard track gauge of 62 cm allows this Tracking Dolly to move on all common tracks which are standard around the world. As an option economical and compact rubber tracks (204804) are available.

Telescopic Push Rod 204803

Rubber Track 10 m / 33 ft. with Bag 204804 and 204805

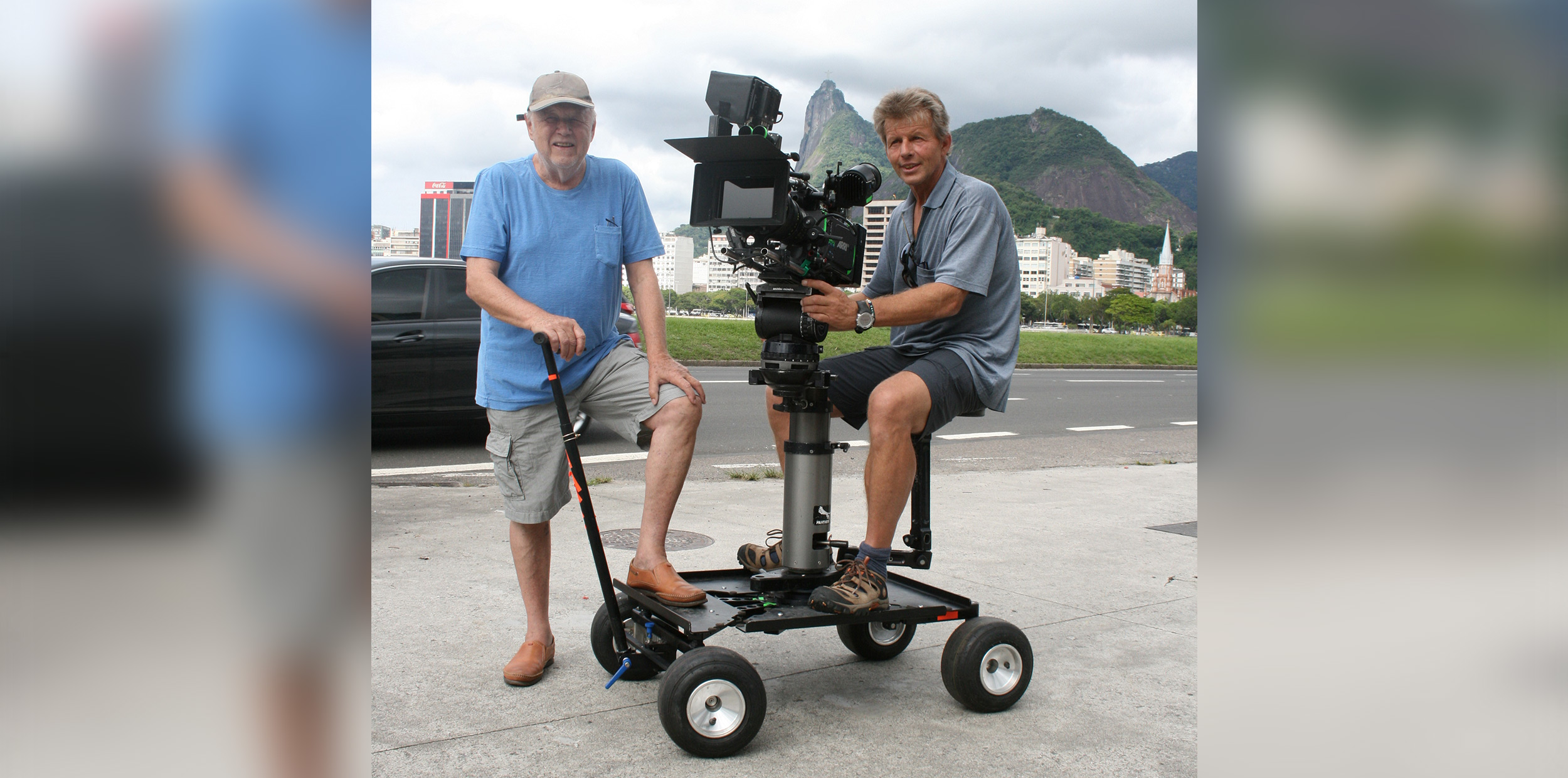

DOORWAY DOLLY

Small Design with full power
A further modification would be an upgrade with a tire set. Weighing less than 19 kg (42 lbs) this Doorway Dolly gives you the freedom you need.

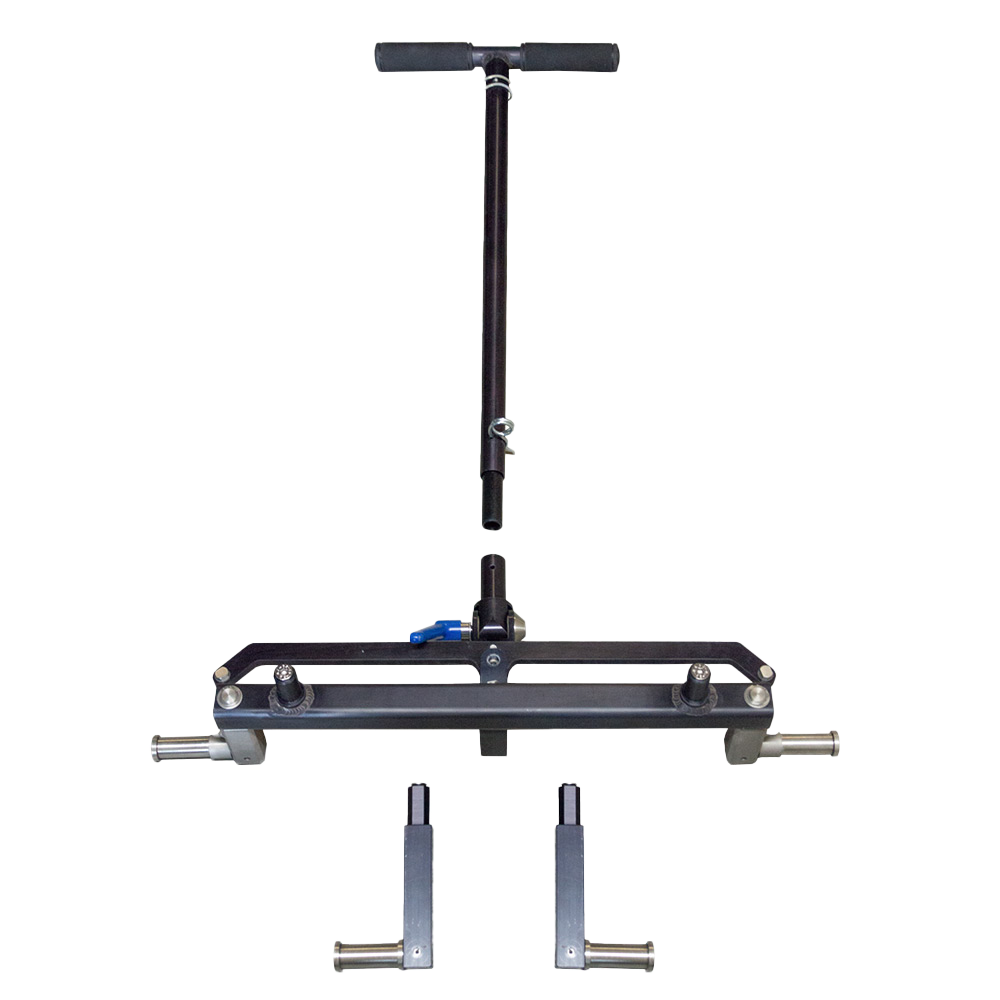

Tire Set (with Steering and Drawbar) 157041
Twin Wheel for more stability 155493
Supreme operation is achieved by using the electrical driven P1 column
Ready to configure your product
Exactly the way you need it
CONFIGER YOUR INDIVIDUAL FLEX GRIP KIT!
ALL COMPONENTS
MAIN PRODUCTS
Choose amount of all parts that you want to add to your inquiry.





FEET & WHEELS
Choose amount of all parts that you want to add to your inquiry.






BUILD A DOLLY
Choose amount of all parts that you want to add to your inquiry.







CAMERA
ATTACHEMENTS
Choose amount of all parts that you want to add to your inquiry.



RIGGING
Choose amount of all parts that you want to add to your inquiry.








SEAT & SEAT ACCESSORIES
Choose amount of all parts that you want to add to your inquiry.











Universal accessories
universal accessories
Choose amount of all parts that you want to add to your inquiry.
